This is a great small soundboard transducer, revolutionary in it's simple and refined mode of operation and ease of use.
At the heart of the transducer is a highly flexible beam with a .004" thin film sensor, similar to mic diaphragm material, attached to it's surface. The beam is held in equilibrium and damped by another LR Baggs innovation - opposing Neodymium magnets. The sensor floats between the magnets and is not bogged down in viscous fluid or clamped between elastomeric pads, so it is completely free to respond instantly to the smallest nuance without artifact or coloration. Also, the magnets are tuned to progressively damp the sensor and respond naturally to the dynamics of the instrument.
The frequnecy response is linear, silky smooth and accurate with an astonishing natural and effortless sound. Unlike most soundboard transducers, the Radius is also very tolerant to placement and works well in a variety of locations. The output of the device is quite strong which allows passive use with a normal length cord without a preamp into most acoustic amps. The case is injection molded of a non-resonant conductive ABS material developed in collaboration with a respected plastics manufacturer. The CAD designed case acts like a vault for the transducer insuring ultra quiet operation.

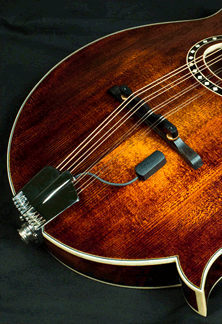

The Radius may be mounted to the outside surface of the instrument with a removable, non-destructive adhesive or to the inside with VHB adhesive. The Radius "kit" includes adhesive, 1 1/4" stereo jack and a side mount jack holder to enable internal or external mounting.
